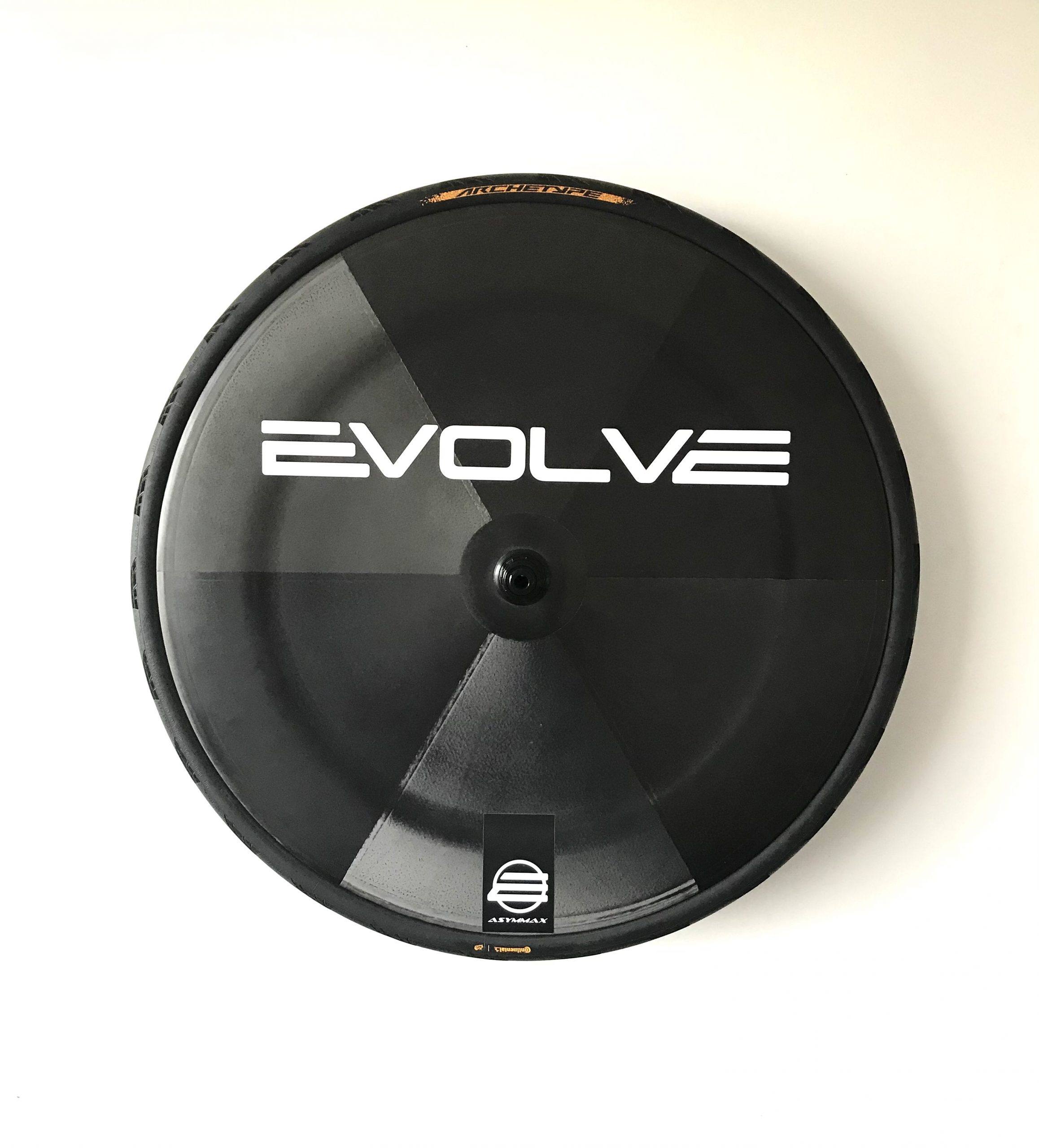

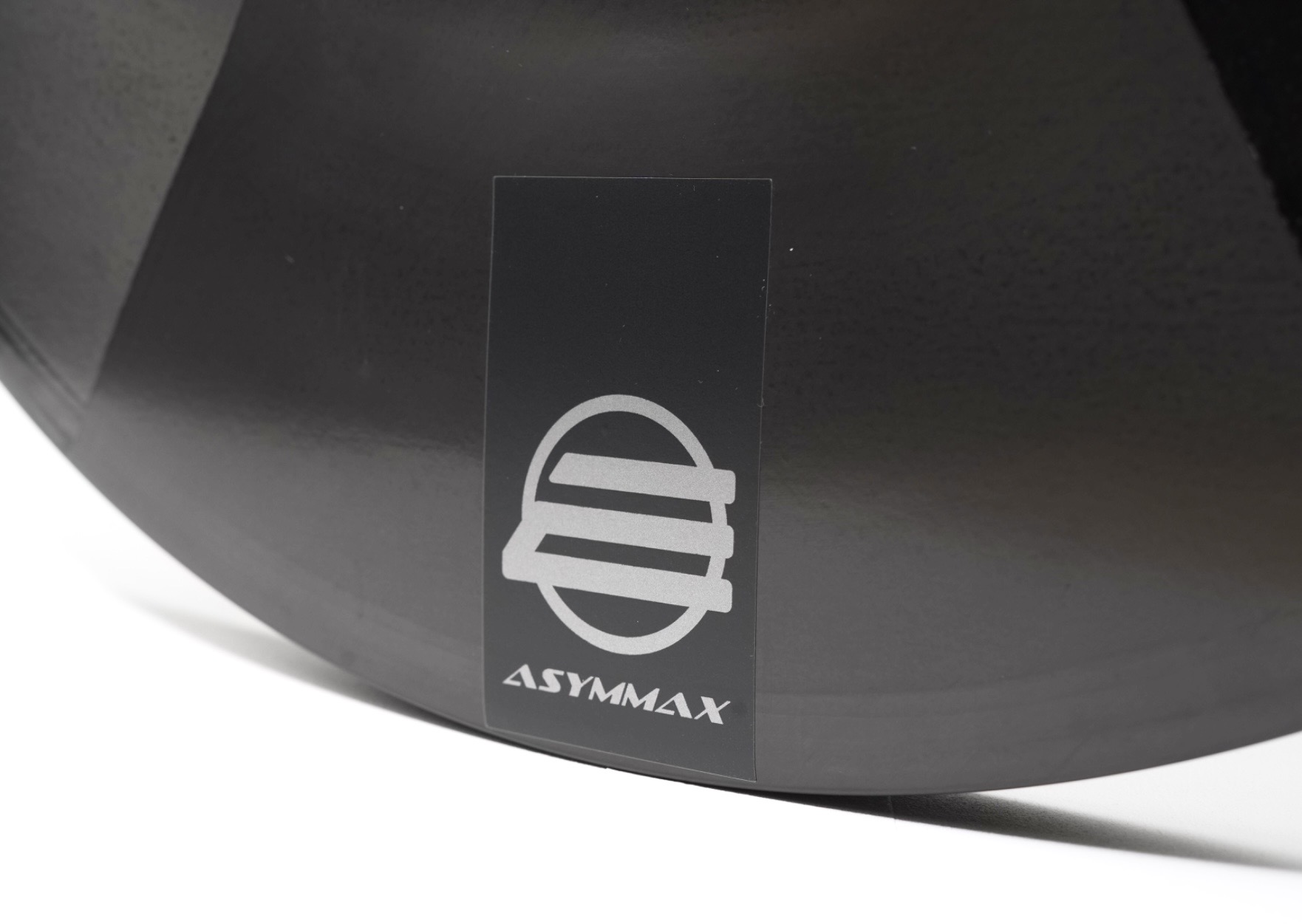

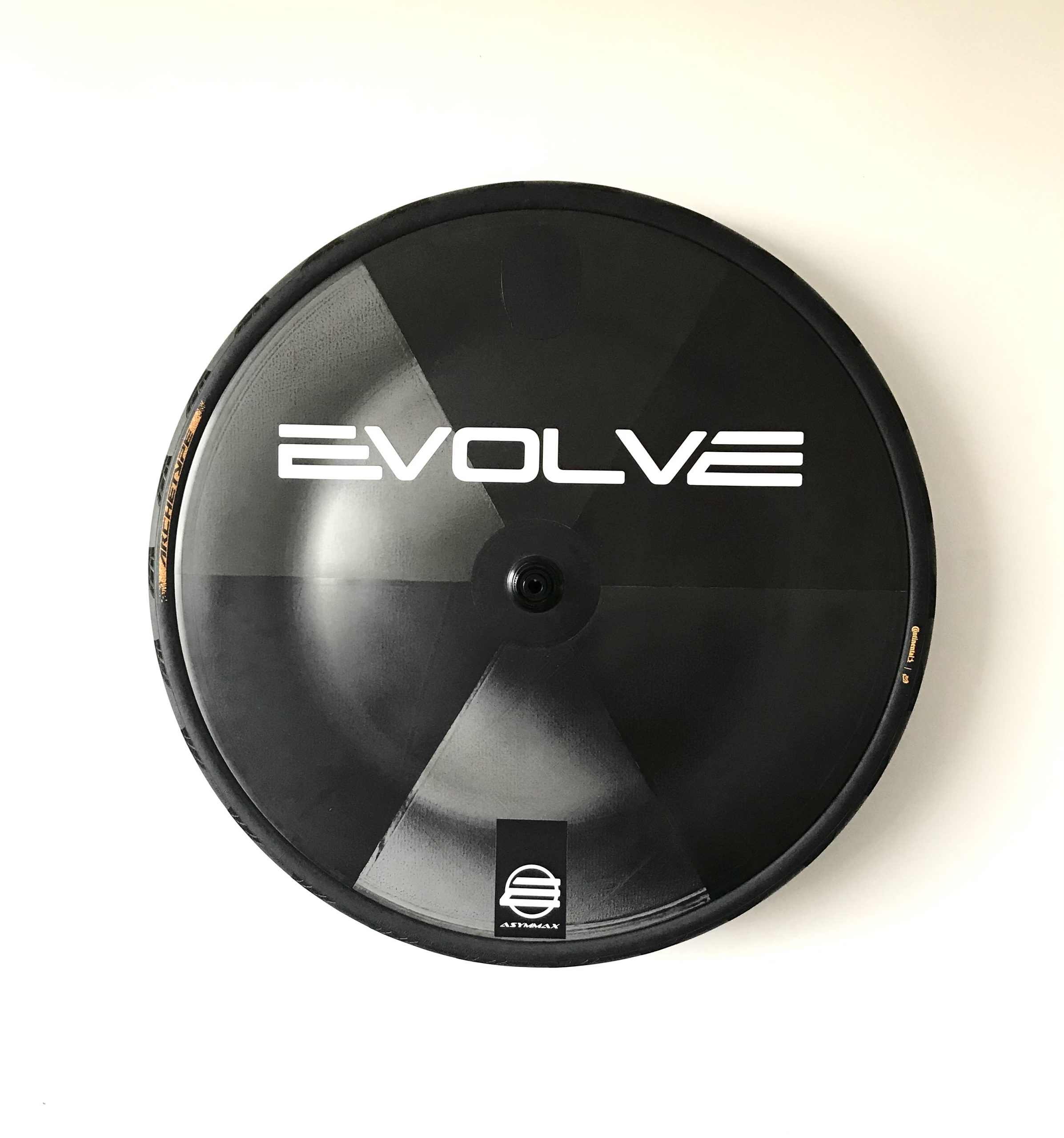

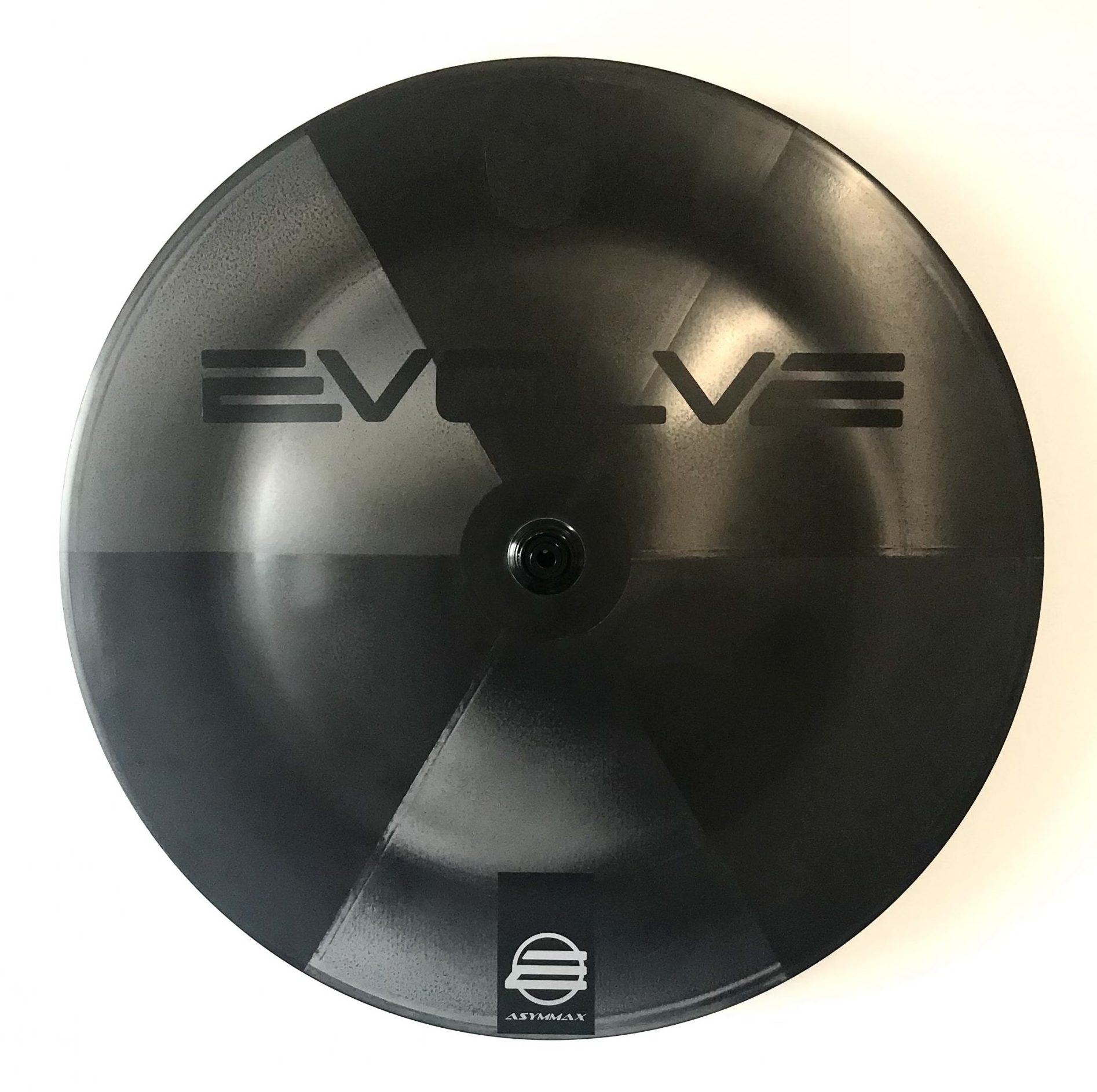

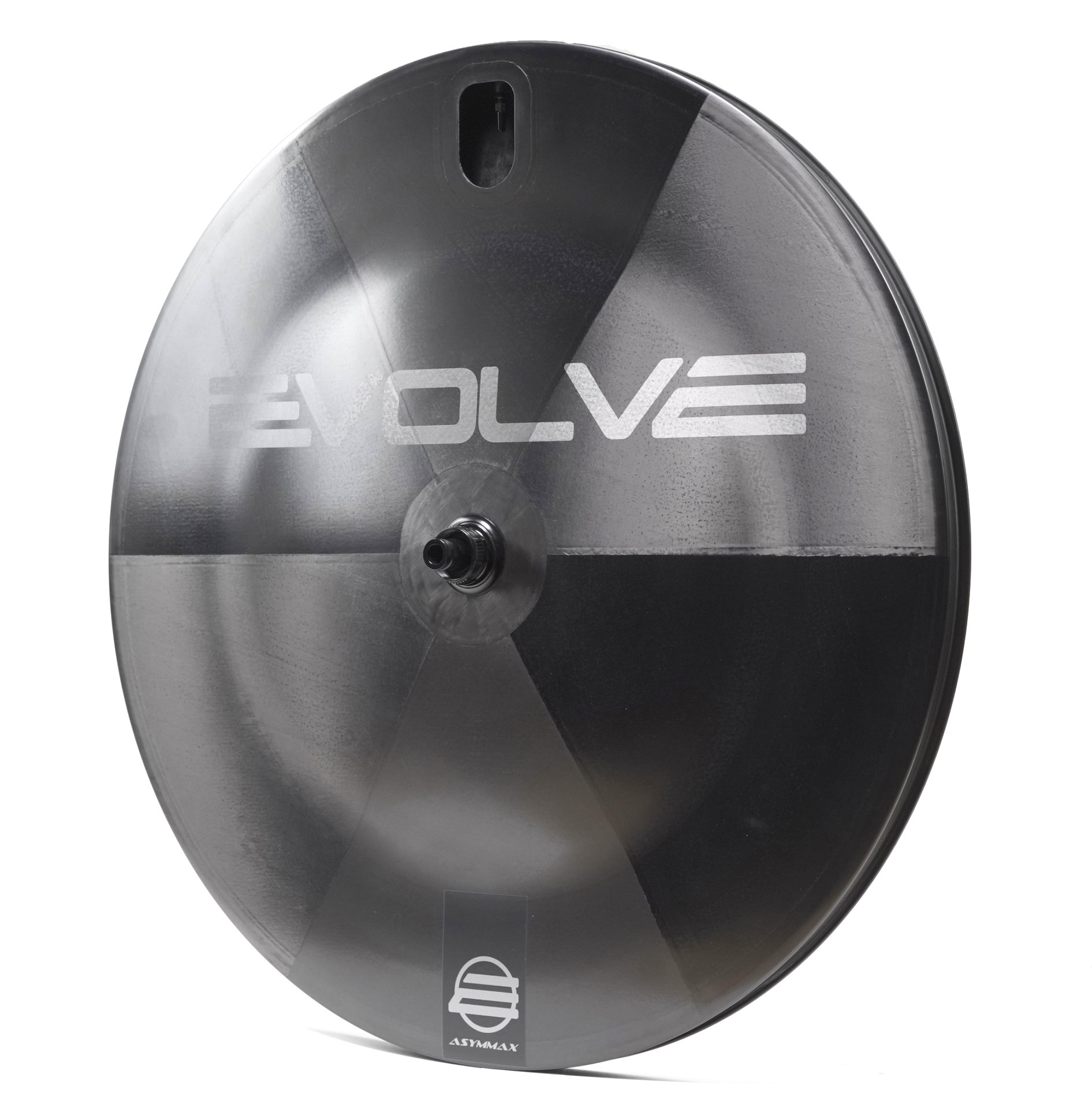

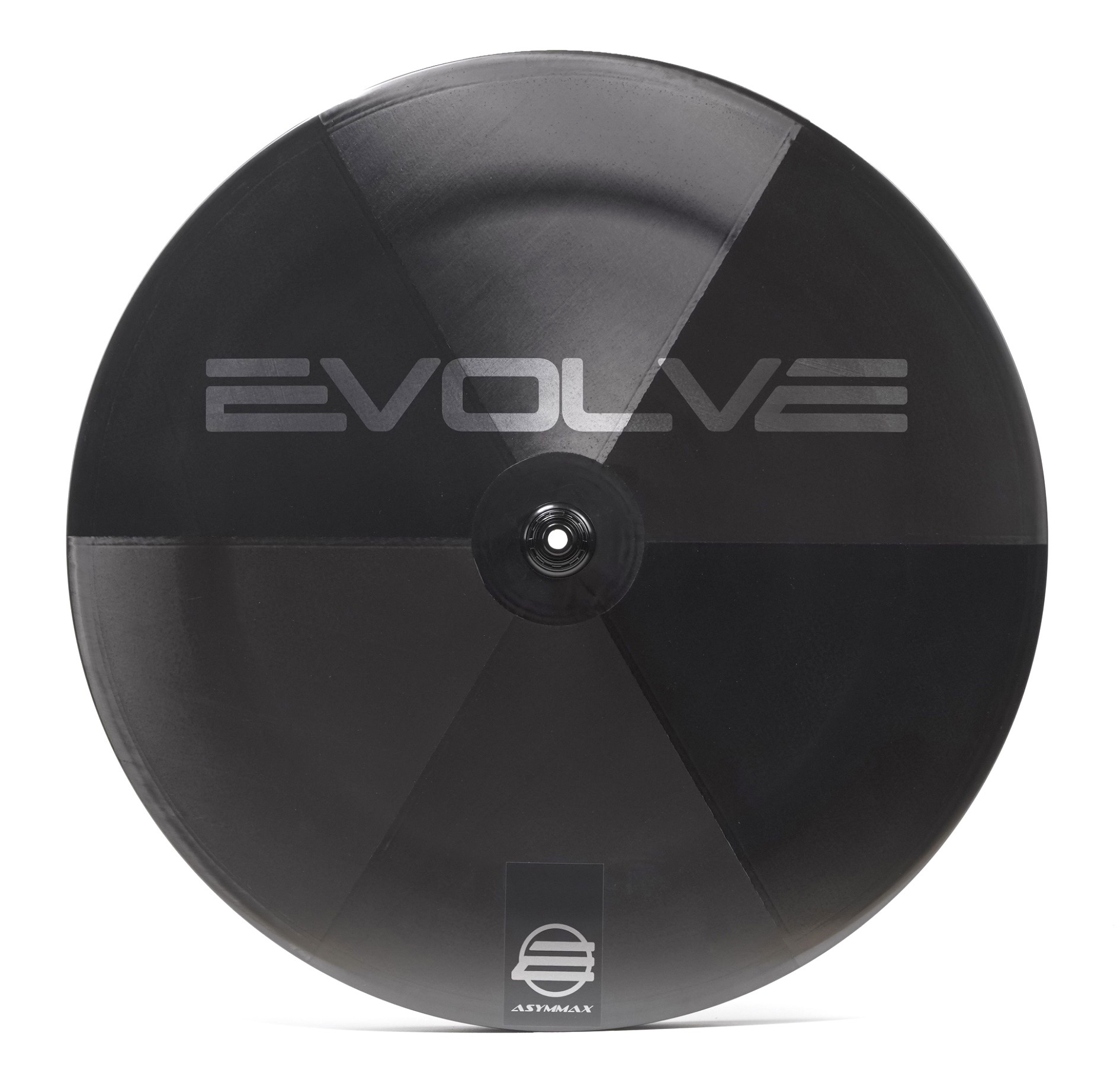

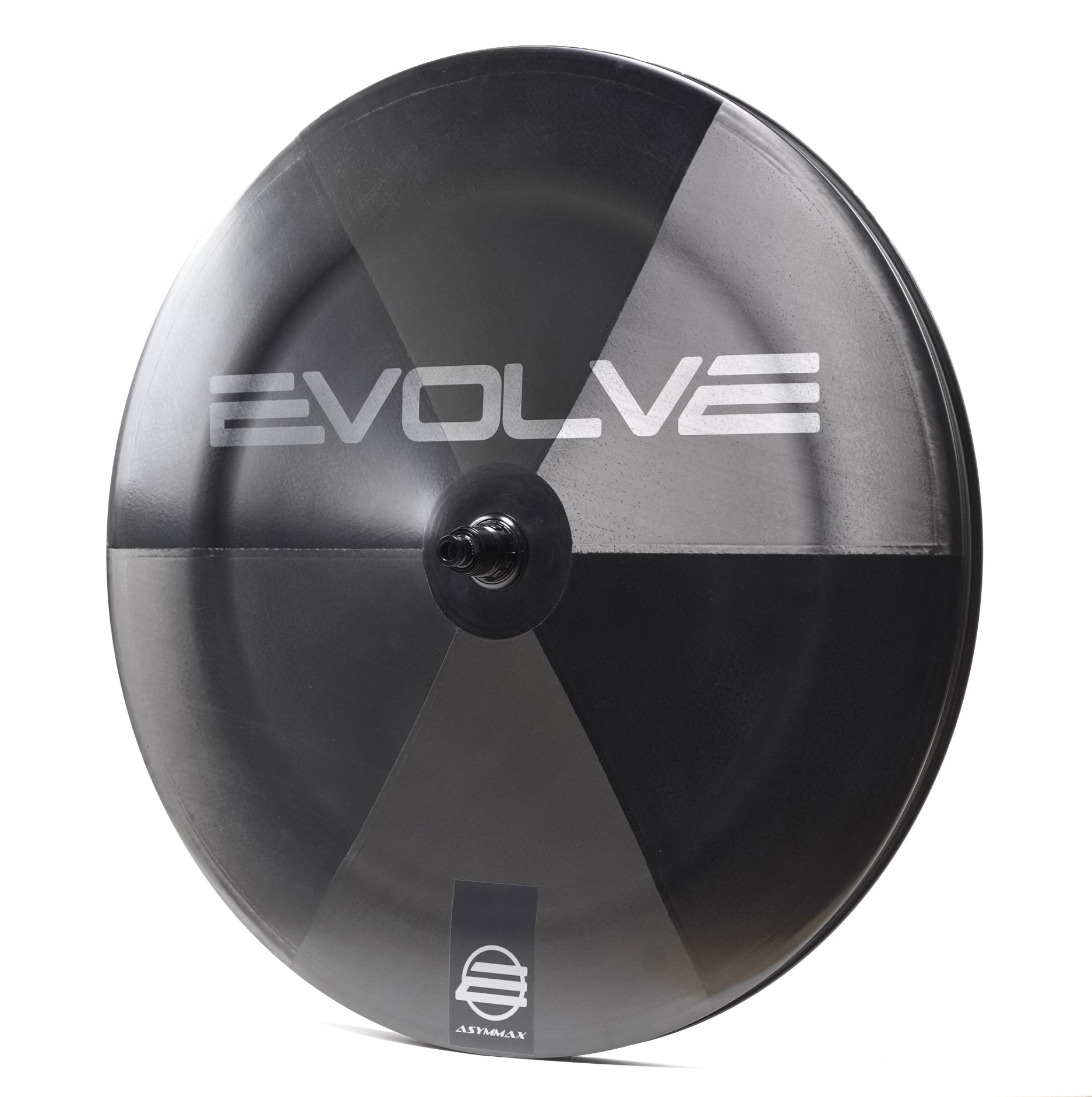

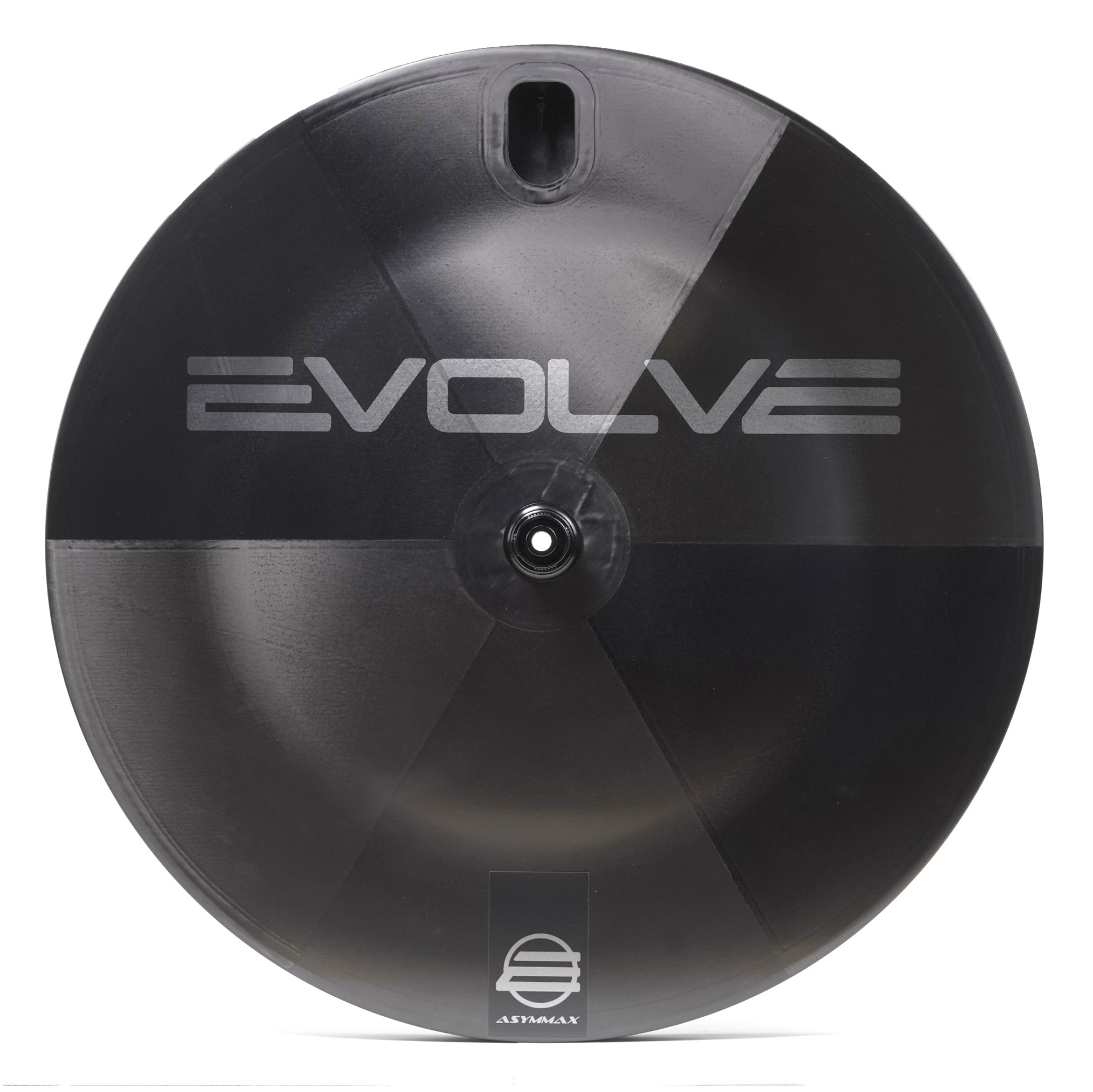

ASYMMAX

£1,795.00

The Asymmax is the most accomplished disc wheel we’ve ever produced, engineered for pure speed. Building on the success of its predecessor, the Asymm, the Asymmax delivers significant performance improvements across the board. It’s optimized for the latest generation of wider 28mm to 30mm tyres, eliminating the usual aerodynamic drag increase and weighs in at just 925 grams—cutting over 260 grams of rotating mass. At the same time, it achieves a remarkable increase in lateral stiffness, resulting in an unbeaten overall efficiency. The outcome is peak performance at any level of racing.

Contact for Availability

Category: SKU: asymmax-disc-brake Tags: Brand:

Description

In recent years, our understanding of time trial tyre performance has evolved, recognising that in almost all racing conditions, wider tyres will deliver superior performance. The Asymmax is designed specifically with this in mind, supporting tyre widths from 25mm to 32mm, but performing best with 28mm to 30mm options.
An extra-wide 23mm internal rim width between hooks allows for both clincher and tubeless setups and creates a more efficient tyre-rim profile that reduces system drag while also offering all the benefits of wider tyres at lower pressures:

  • Reduced rolling resistance
  • Greater comfort
  • Enhanced handling
  • Lower risk of punctures

If you’re racing against the clock or aiming to save energy for a given effort the Asymmax delivers a new standard of speed and efficiency.

Specification





Material Carbon Fibre/Structural Foam/Carbon, Raw
700c Wheel ETRTO 622mm x 23mm internal, Clincher/Tubeless rim – Hooked
Inner Rim 23mm Hooked

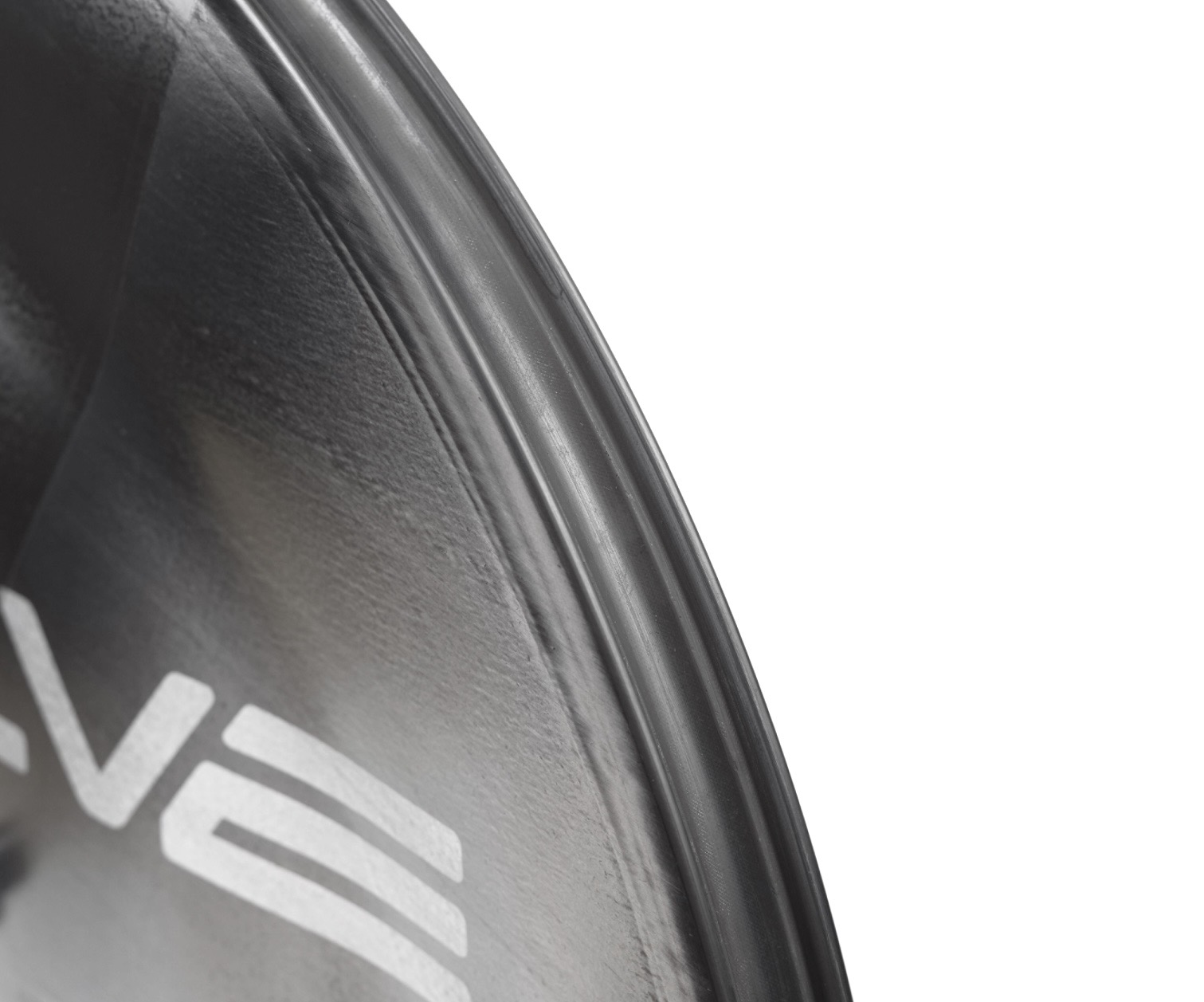

Outer Rim 30.25mm Perimeter. Maximum outer toroidal bulge 34mm
Hub Unit Alloy custom / black anodised
Freehub Alloy 36 ratchet 11/12 Shimano HG / Sram XDR12s
Bearings 2×6802 / 2×15267 Ceramic
Braking Disc Brake
Tyre Compatibility 24mm to 32mm / optimal sizes 28mm & 30mm

Weights

+/- 20g

– Carbon Tubeless/Clincher 925g

Maximum Recommended Rider Weights

Asymmax 90kg

Additional information

Freehub (Cassette)

Shimano HG, SRAM XDR

Decal Colour

, ,

Delivery and Returns

Lead Time

There is a 1 to 3 weeks lead time for all Revolver Wheels. There is a 1 to 10 days lead time on all accessories.

Returns

We are happy to offer an exchange or refund. Perhaps the item is not what you want, it doesn’t fit, or maybe you’ve just changed your mind. As long as your items are unused, in their original packaging and returned within 28 days of receipt, just send it back.

Please note, unwanted items are returned at the buyers expense.

If you return an item because it is not as described or it’s damaged, we will replace the item or issue a full refund by the payment method that was received.

Warranty

Extent of Limited Warranty warrants its products to be free from defects in materials or workmanship for a period of two years after original purchase. This warranty only applies to the original owner and is not transferable. Claims under this warranty must be made through the retailer where the wheel was purchased or direct to the Wave Lenticular Ltd via e-mail. Original proof of purchase is required.

Limitations of Liability

To the extent allowed by local law, except for the obligations specifically set forth in this warranty statement, in no event shall Wave Lenticular Ltd. or its third party supplies be liable for direct, indirect, special, incidental, or consequential damages.

Limitations of Warranty

  • This warranty does not apply to products that have been incorrectly installed and/or adjusted.
  • This warranty does not apply to damage to the product caused by a crash, impact damage, abuse of the product, non-compliance with manufacturers specifications of usage or any other circumstances in which the product has been subjected to forces or loads beyond its design.
  • This warranty does not apply when the product has been modified.
  • This warranty does not apply when the serial number or production code has been deliberately altered, defaced or removed.
  • This warranty does not apply to normal wear and tear. Wear and tear parts are subject to damage as a result of normal use.
  • This warranty shall not cover damages caused by the use of parts of different manufacturers. This warranty shall not cover damages caused by the use of parts that are not compatible, suitable and/ or authorized by Wave Lenticular Ltd.

Lifetime Crash Replacement Policy

In the unfortunate event of a crash resulting in such damage to your wheels that renders them unsafe for use we will help out by discounting the like for like replacement by up to 33% for the lifetime of your wheels under original customer ownership. Any shipping costs of return or replacement are not covered within this policy and are the responsibility of the customer.

What’s not applicable-

  • This replacement service does not carry over to subsequent owners and original proof of purchase is required upon application.
  • This service does not cover cosmetic damage or apply to general wear and tear from normal use such as (but not limited to) – snapped spokes, bearings or seals degradation.
  • Any shipping costs of return or replacement are not covered within this policy and are the customers responsibility.

3 YEAR WARRANTY

At Evolve Aero we endeavour to support our customers with excellent backup service in the unlikely event of a warranty related issue and resolve any problems in a timely manner subject to stock availability or lead times. Our support reputation relies on a satisfactory customer experience should things go wrong.

Your wheels carry a 3-year material defects and craftmanship warranty. This period applies rigidly from the date you receive your wheels. It does not cover crash or accidental damage, please refer to the lifetime crash replacement policy. Warranty does not carry over to subsequent owners and proof of purchase should be retained while in ownership. Warranty does not cover failure due to impact or improper use. Damage as a result of Incorrect- installation, adjustment or maintenance is not covered under warranty. Rider weight limits must be adhered to during the lifetime of the wheels- refer to the product page for maximum rider weight information. Any return shipping of wheels or import related costs- tax/duties etc are the responsibility of the claiming customer.

If you have a potential warranty claim and require further instruction or advice just get in touch by email – sales@evolveaero.com we’re here to help.
