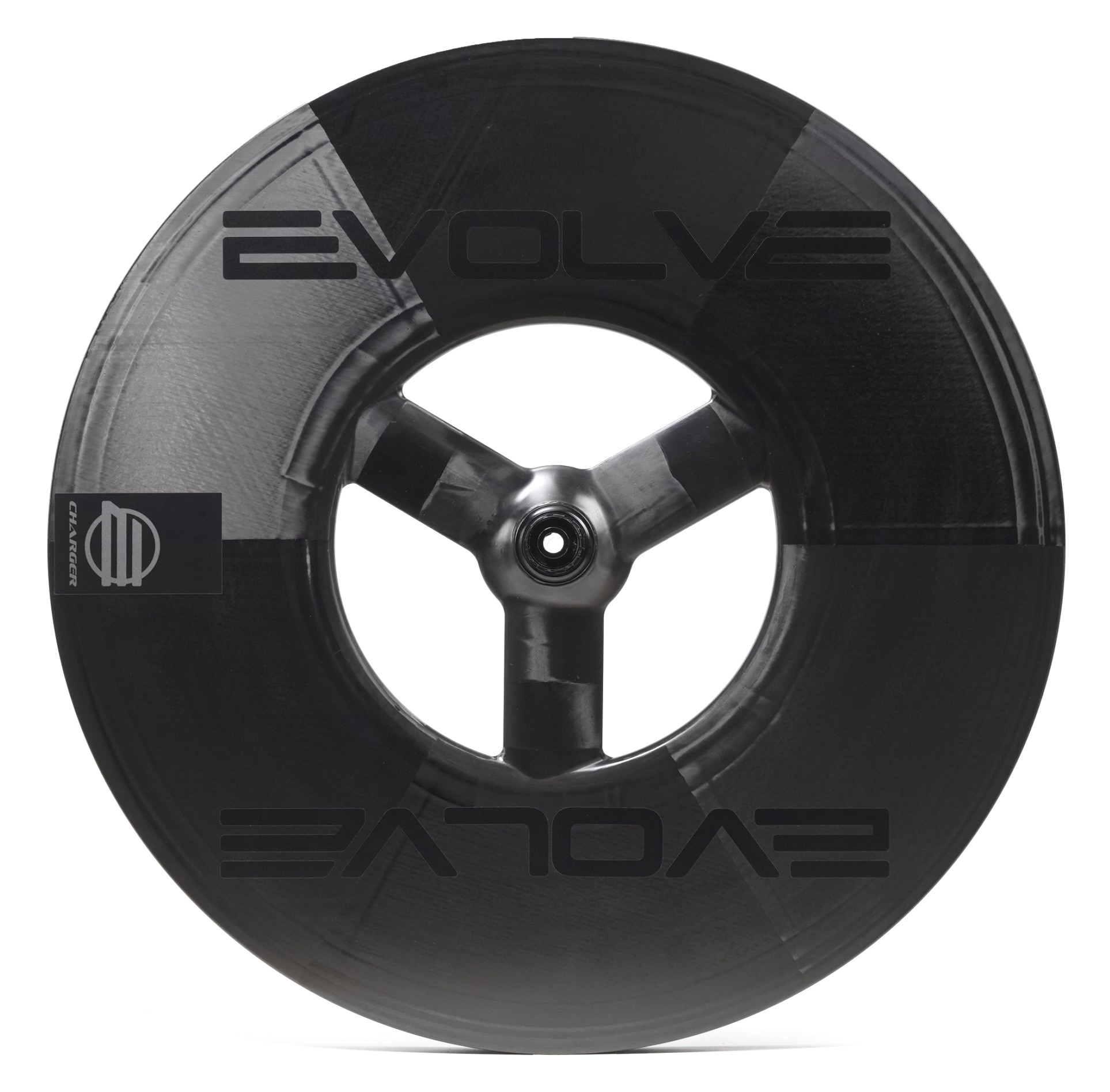

Charger Trispoke (Front)

£1,795.00

The Super Deep Charger Trispoke represents the next evolution in aerodynamic performance, offering experienced time-trialists and triathletes a versatile alternative to a full disc wheel when racing on closed roads, such as UCI time trials, and in conditions where wind speeds are expected to be below 15kph.

Engineered for unrivaled speed, the Charger is, in our view, the world’s fastest non-disc front wheel available today. Designed with cutting-edge aerodynamic principles, it minimizes air separation, delivering a decisive performance advantage when every second matters and could make the difference between a podium finish and missing out.

As the world’s deepest-profile trispoke, the Charger sets a new benchmark. Weighing approximately 995g, it’s light enough for all but the most challenging of terrain, while its aggressive aerodynamics make it a true game-changer in flat and rolling courses. However, due to its incredible depth it is recommended only for highly experienced riders with strong bike-handling skills.

Compatible with both clincher and tubeless tires, the Charger accommodates nominal widths from 23mm to 32mm. For optimal aerodynamic efficiency, we recommend pairing it with tires between 25mm and 29mm.

Contact for Availability (Approx 4 week lead time)

Category: SKU: evolve-charger-front Tags: Brand:

Description

Specification

700cc Wheel ETRTO 622mm x 21mm (internal) Clincher/Tubeless Rim – Hooked
Material Carbon Fibre, Hollow, Raw  Surface
Inner Rim 21mm Hooked
Outer Rim 29mm
Hub Unit Aluminium Alloy Custom Charger, 100*12mm Thru Axle, Centre Lock
Bearings TPI 2×6803
Braking System Disc Brake (Centre Lock Fitting)
Tyre Compatibility 23mm to 32mm (Optimal 25mm to 28mm)
Maximum Rider Weight No Limit
Warranty 2 Years Manufacturer Fault

MAXIMUM RECOMMENDED TYRE PRESSURE

25mm – 90psi / 6.2bar

28mm – 85psi / 5.8bar

30mm – 80psi / 5.5bar

32mm – 75psi / 5.2bar

Weights

995g +/- 30g



Wind Tunnel Test

Evolve Aero Charger Front Wheel Wind Tunnel Test
