Disc Brake Rotor Locking Shield.

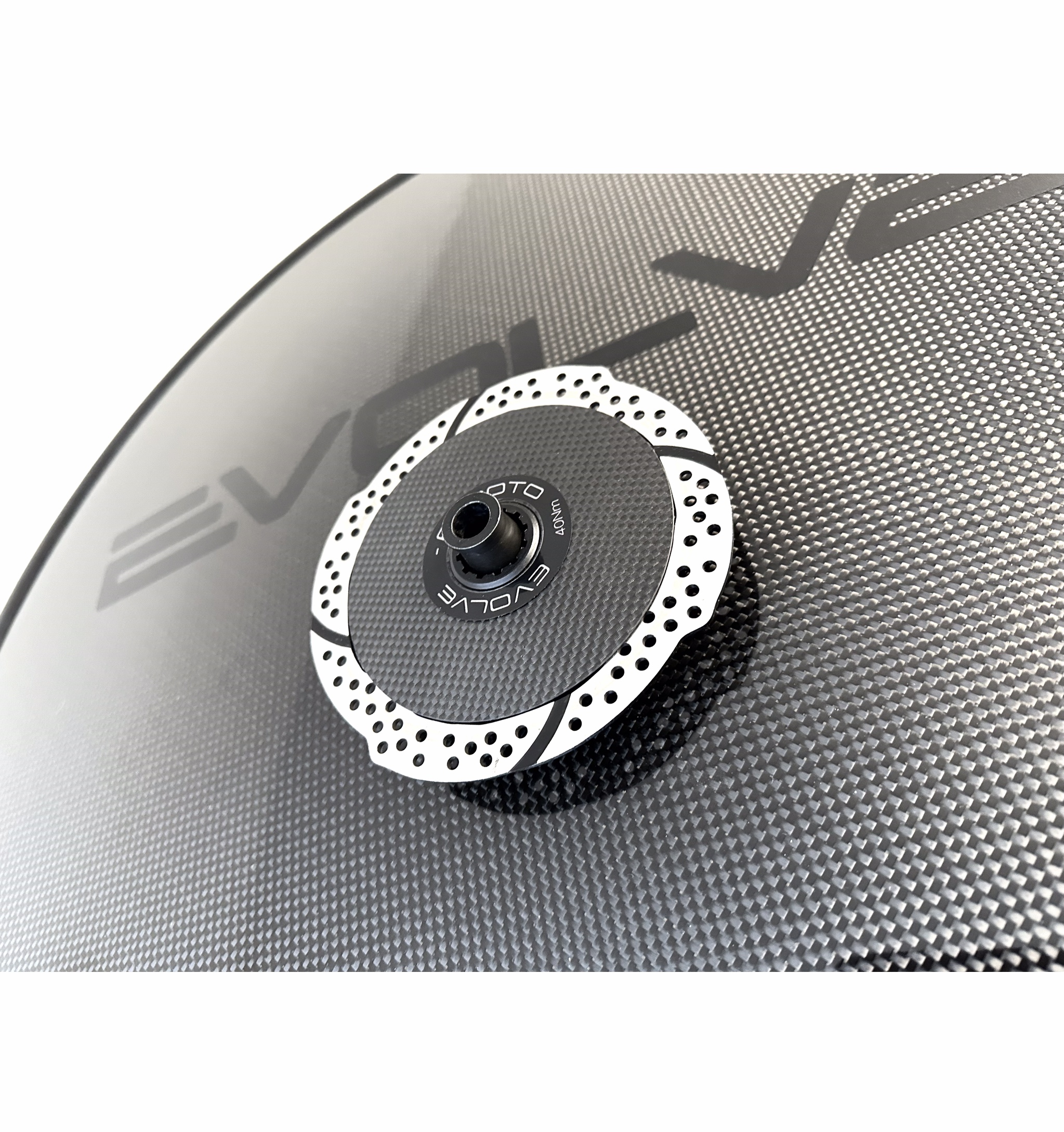

The Aeroto is an aerodynamic component which has been designed to help improve airflow around disc brake rotors and replaces your existing lock ring on 140mm and 160mm size centre lock rotors.

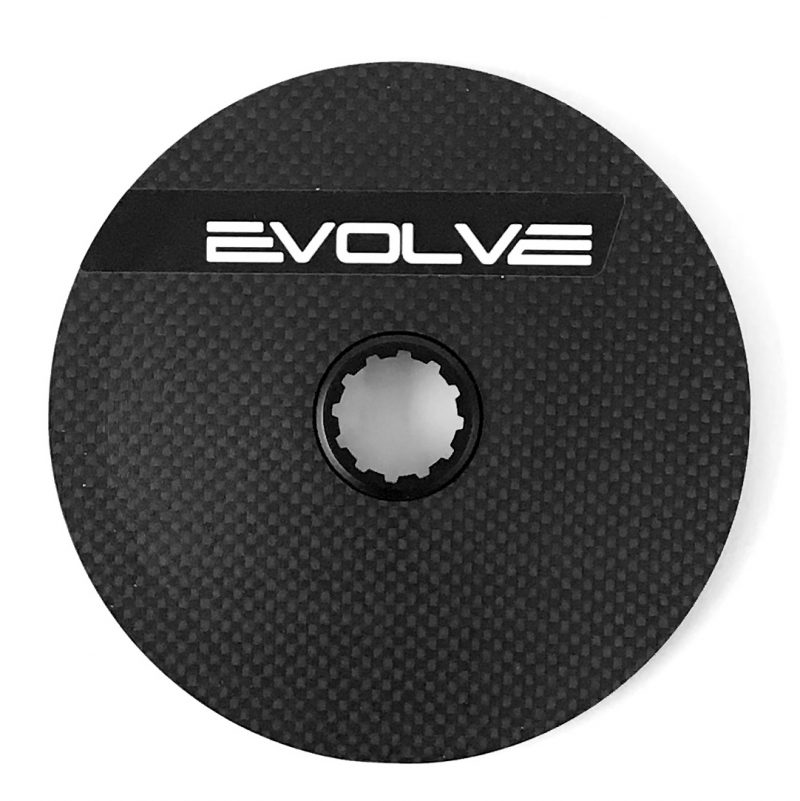

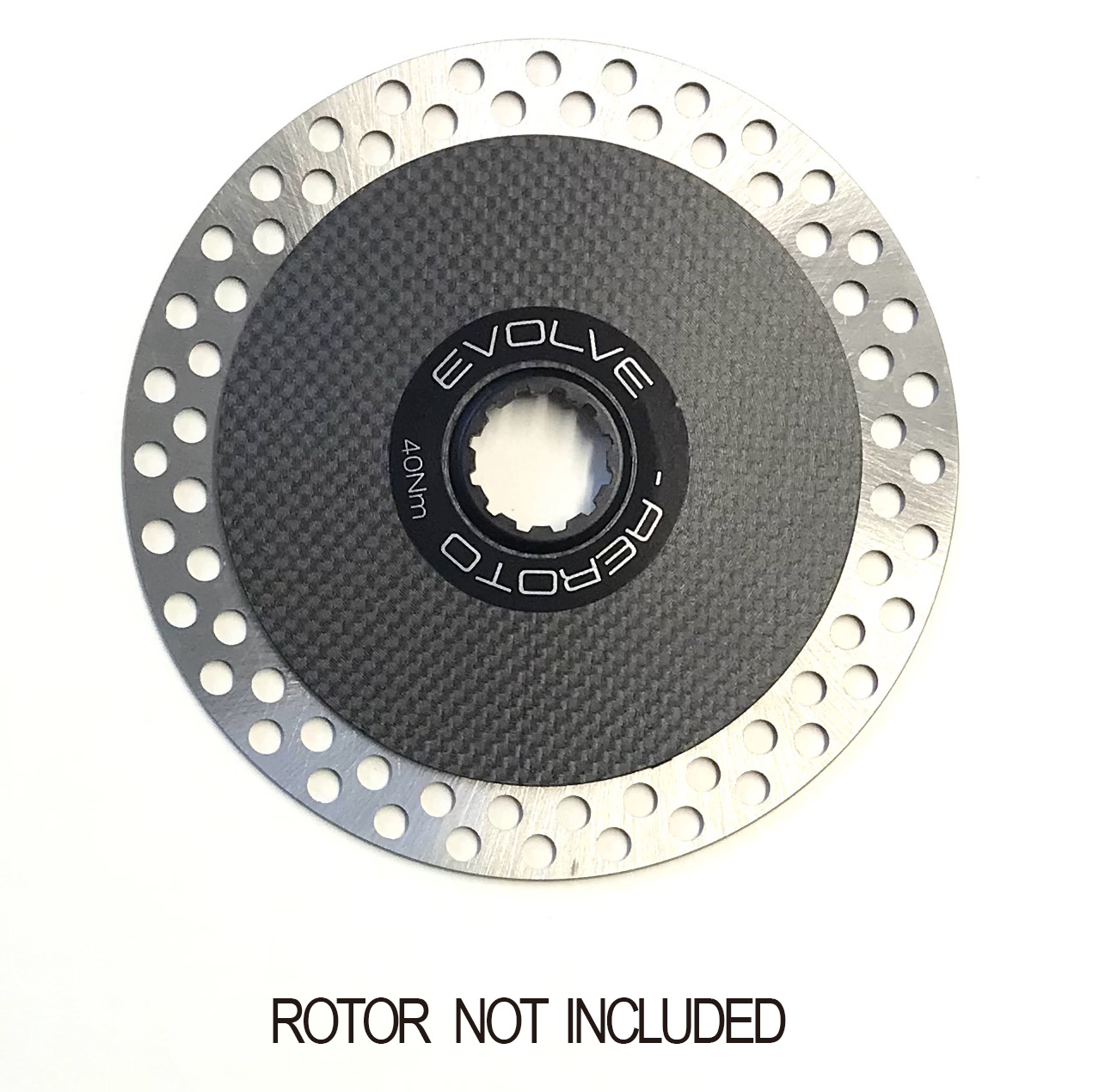

This one piece stealthy Carbon fibre lens has a bonded durable alloy central fitting and can be easily switched between different rotors (rotor not supplied). Compatible with Shimano, Sram, TRP, A2Z rotors etc and fitted using a regular internal rotor/cassette lock ring tool. Oversized axles which require an external outer locking tool are not compatible.

*Note that some TRP brake callipers are not compatible.

Lead 1-7 days – Contact on availability

Note: These are sold as a single item and not a pair. If you need a pair please ensure you order two of the correct size.

Note: This is not compatible with the Scott Plasma 6 frame set

Add to Wishlist
Add to Wishlist
Category: SKU: revolver-aeroto Tag:



The Aeroto has undergone 12 months of real world field testing at the highest level of professional Triathlon racing and used during Ironman records and wins along the way. Intended mainly for front wheel use but can also be fitted to the rear on TT/Tri bikes on race day wheels only and not to be used on road bikes or for general training. Design features are in place to reduce risk of unwanted overheating but we do not recommend it for races where prolonged heavy braking is required. Aerodynamic benefits are less likely to be seen if mounted to the rear rotor.

Upon fitting ensure that the calliper braking pads only contact the outer metal brake surface of the rotor and do not come into contact with the Aeroto carbon shield when brakes are engaged as this is likely to result in immediate failure of the shield. Typically the Aeroto will sit with enough clear space without any adjustment to your hydraulic callipers. Please check this carefully before use. Potential savings of 0.5 – 2 watts are indicated in testing when fitted to the front wheel but may differ between wheel types, rotor type and size, fork blade profiling.



Materials Carbon Fibre Lens Outer Shield
Alloy Central Mounting Parts
Wafer Steel Washer

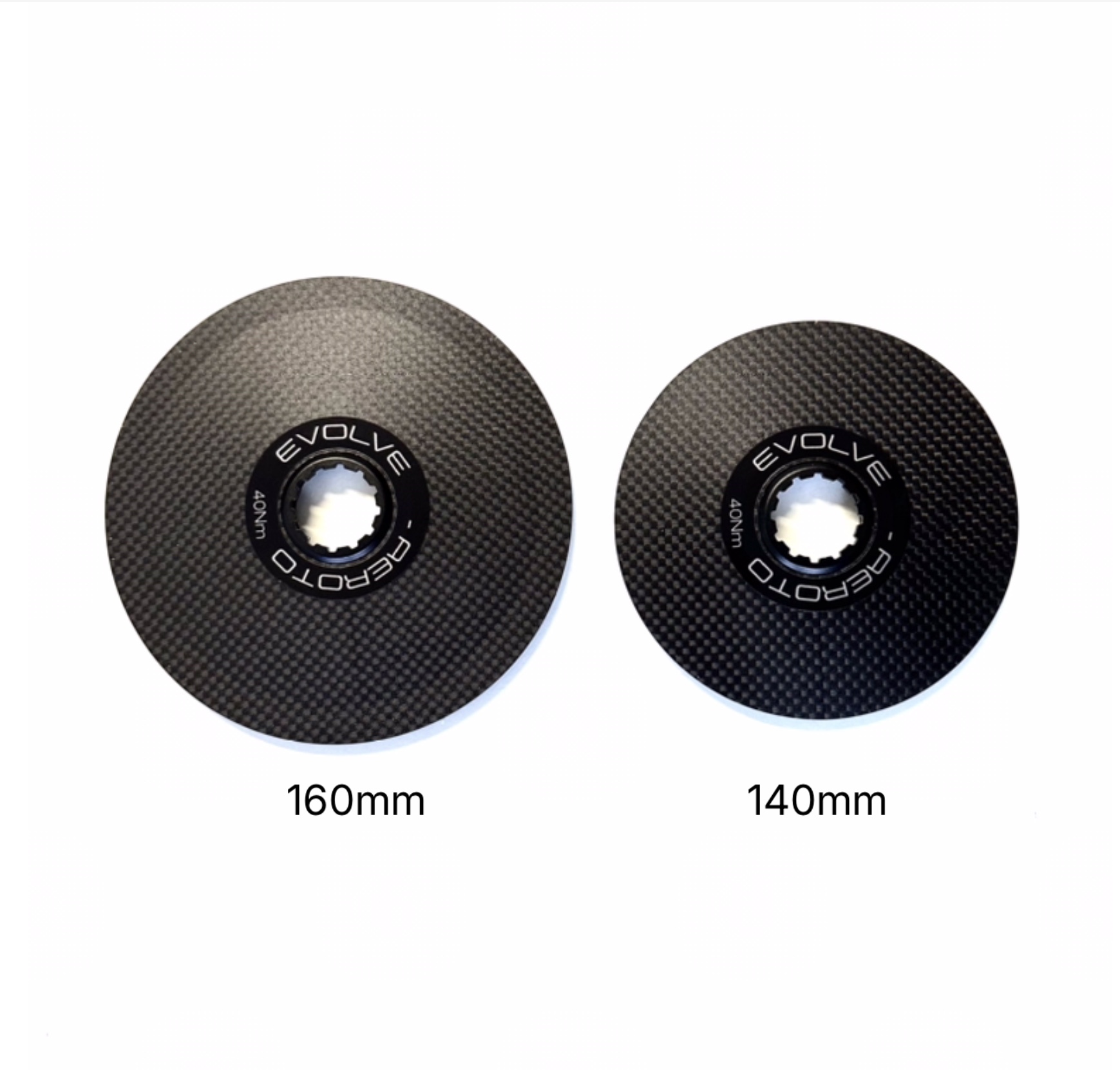

Weight: 140mm 15g
Weight: 160mm 18g

Additional information

Weight N/A
Option (each)

140mm, 160mm
