Description

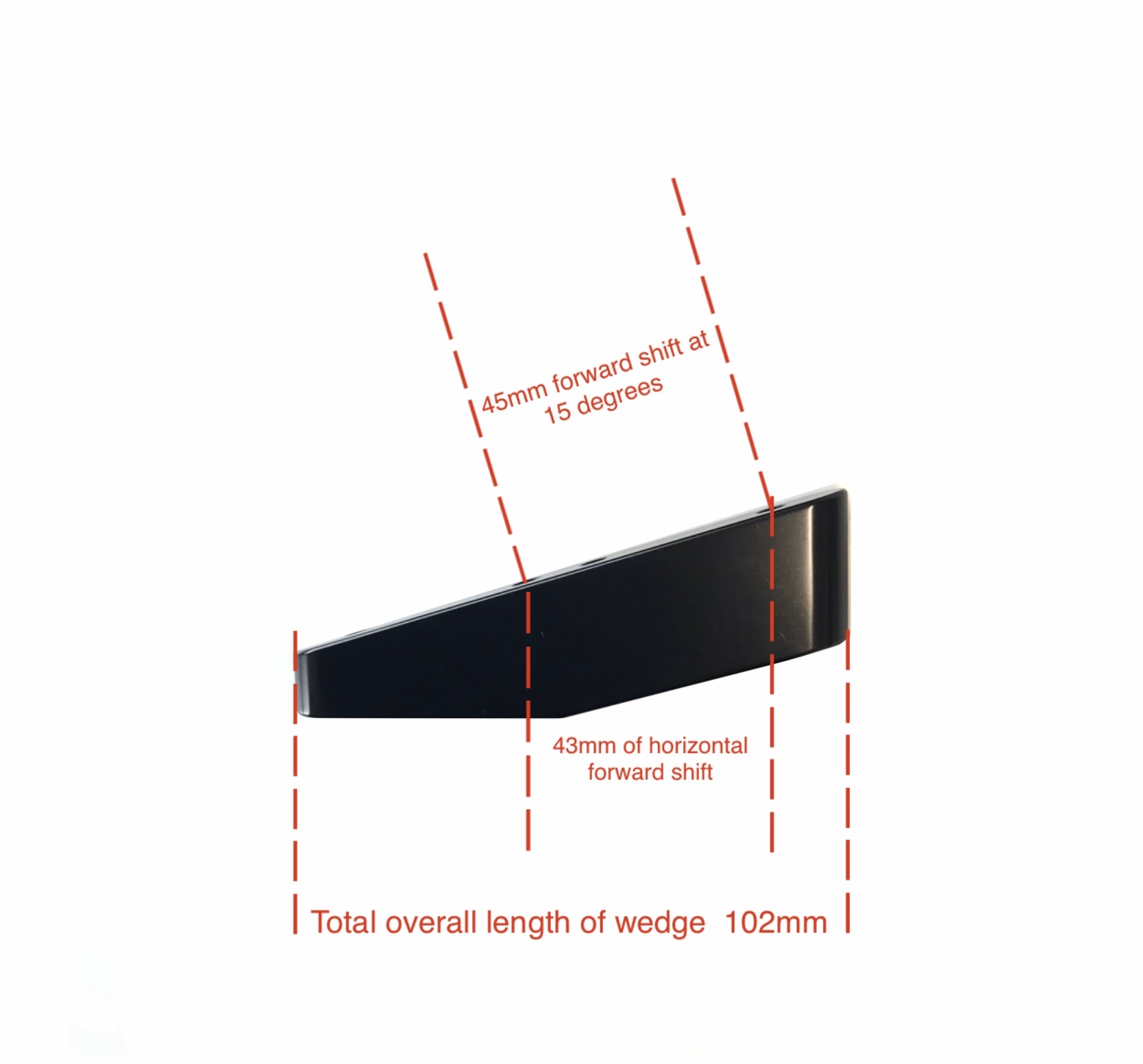

A component that quickly converts the stock horizontal cockpit of the Giant Trinity into the popular Mantis TT or angled forearm position without the need to change extension poles or reroute cables. The BOOST repositions the Tribar mounts 43mm further forwards to extend reach while maintaining the correct positioning of the armrests. If 43mm of movement is not required then the extension poles are simply moved back in the Tribar mounts to achieve the exact amount of shift required.
Almost anyone can carry out this simple 3 step fitting procedure but if unsure we recommend a mechanic carries out fitting. The only tool required is a Hex Allen key.
- Undo the Tribar stack bolts located beneath the base bar to release your Tribar mount.

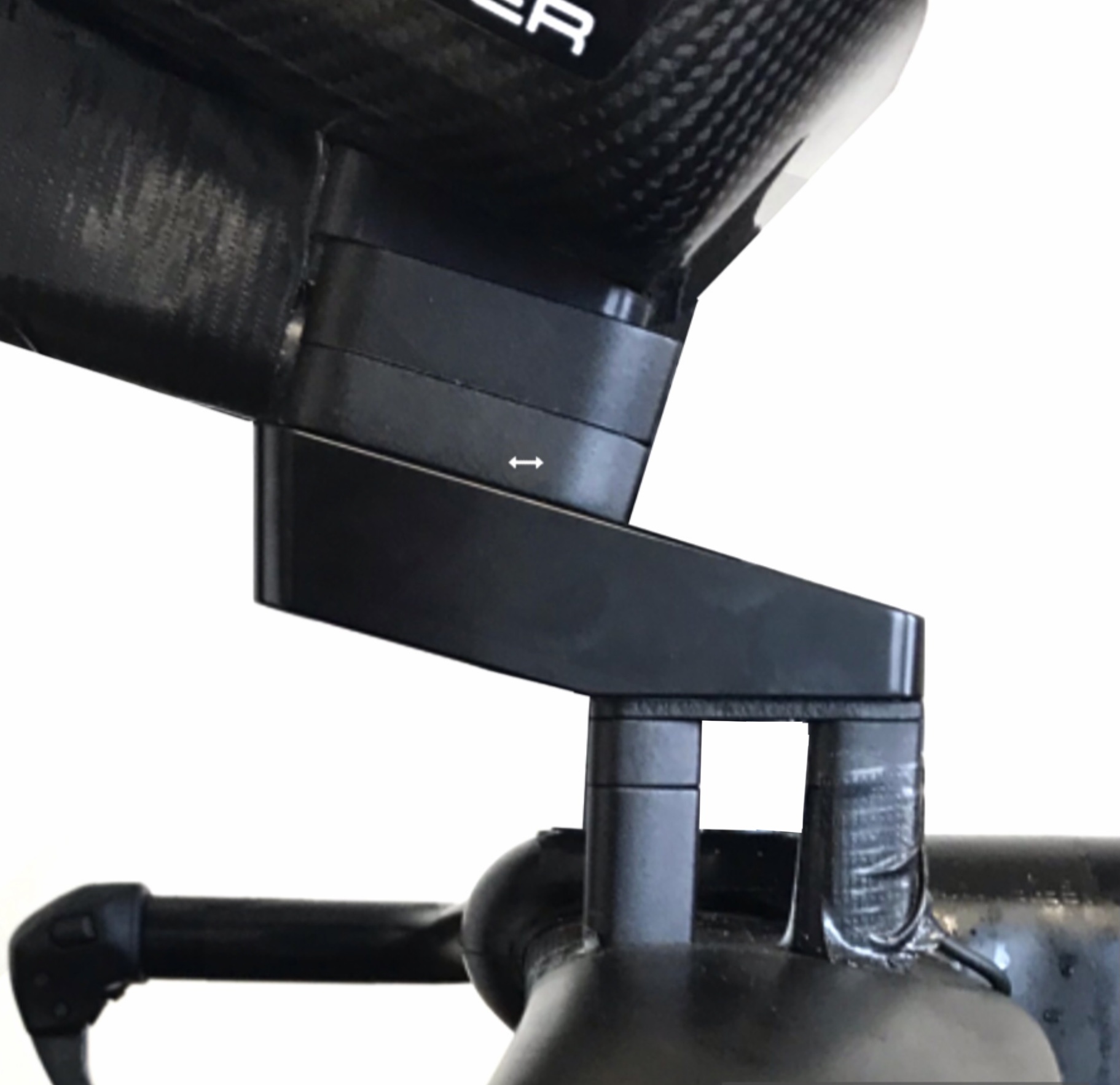

- Mount the Boost wedges onto the top of your Tribar stacks.
- Fit your Tribar mounts onto the top of the Boost wedges.
We recommend that this procedure is carried out one side at a time. The Boost wedges sit directly on top of the brace bridge plate. You must follow the fitting guide enclosed using the longest bolts possible.
Specification
| Material | CNC machined 6082 T6 (heat treated) Alloy – black anodised |
| Weight | 79g each wedge (without bolts) |
| Included Fixings (Bolts) | 4 x 45mm A2 Stainless Steel cap bolts 4 x M5 Stainless Steel spring washers 2 x 35mm 2 x 45mm 2 x 55mm 2 x 65mm 2 x 75mm 2 x 85mm 4 x M5 Stainless Steel washers*Optional Giant Trinity Stack 12x bolt replacement packs are available separately. |
| Angle | 15 Degree | 20 Degree |
