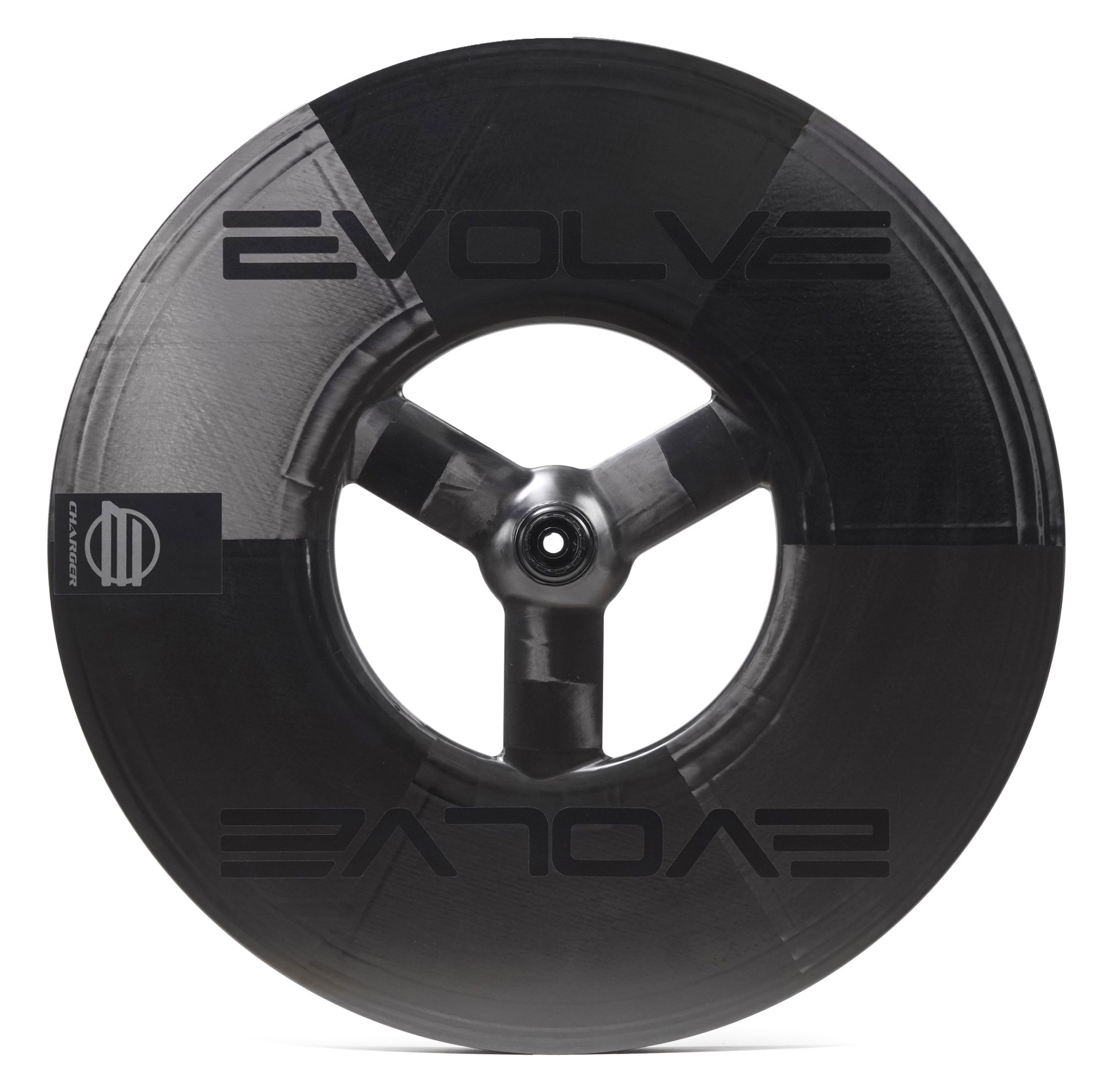

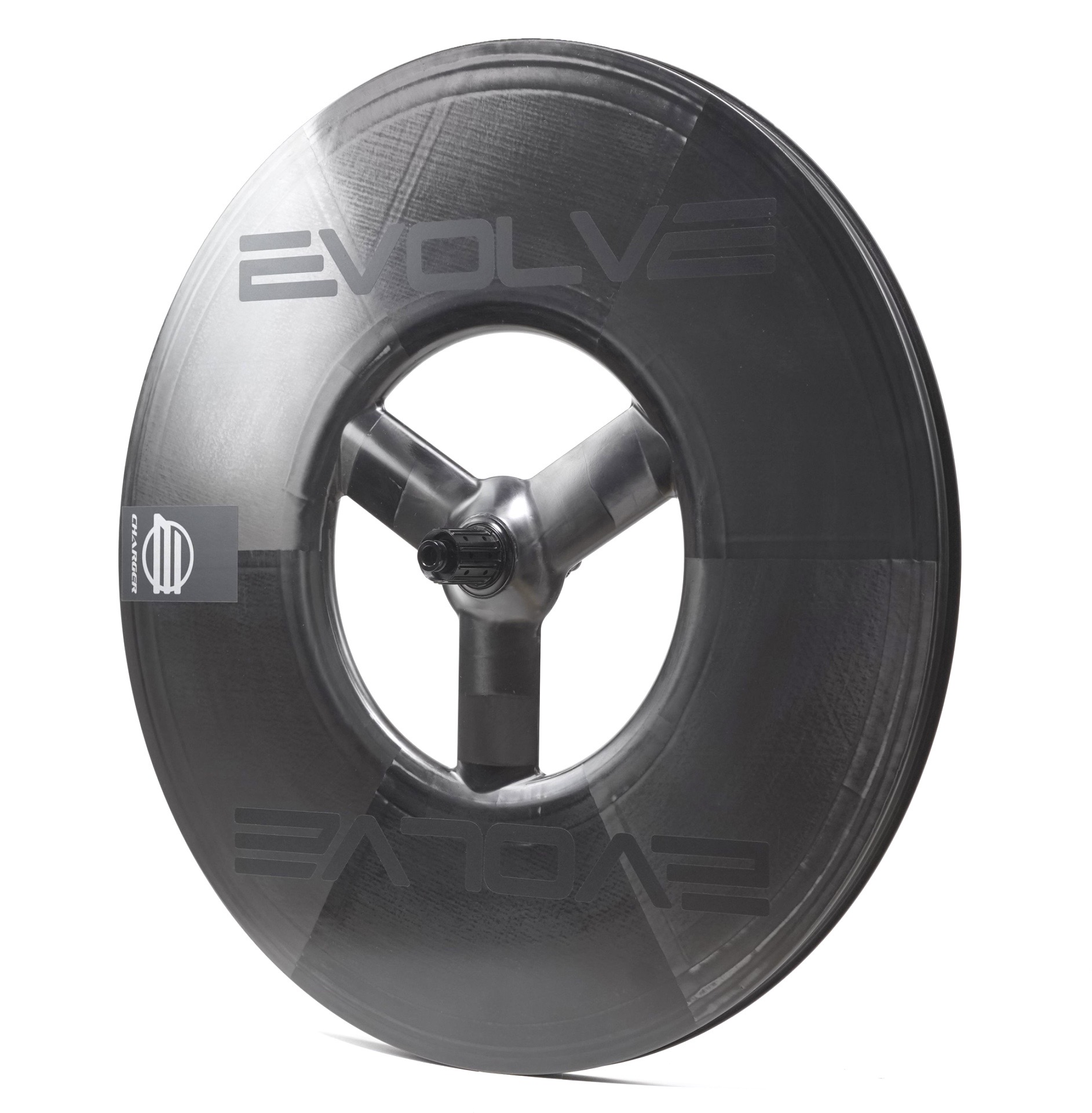

Charger Trispoke (Rear)

Original price was: £1,895.00.Current price is: £1,595.00.

Disc Brake Rear – TT/Triathlon

The Super Deep Charger Trispoke represents the next evolution in pursuit of speed, offering triathletes a versatile alternative to a full disc wheel without compromising aerodynamic performance. This wheel is a game-changer, especially in events where disc wheels are either unsuitable or not permitted, such as the Kona Ironman, where every minute saved can make a difference.

Introduced in 2024, the Charger prototypes made their debut in the Pro ranks, marking a new standard in performance. Engineered to minimize drag around disc brake components and modern oversized drivetrains, the Charger delivers unmatched performance, outpacing other deep-section or trispoke wheels and rivaling the speed of a full disc wheel. Silky smooth ceramic bearings are installed as standard to ensure the frictional drag is kept to a minimum.

Compatible with tire sizes ranging from 23mm to 32mm (nominal), the Charger Trispoke is versatile enough to accommodate both clincher tires (with tubes or tubeless sealant). However, for optimal aerodynamic performance, we recommend using tires in the 25mm to 29mm range.

Contact for Availability

Categories: , SKU: troikamax-1-1 Tags: Brand:

Description

Specification

700cc Wheel ETRTO 622mm x 21mm (internal) Clincher/Tubeless Rim – Hooked
Material Carbon Fibre, Hollow, Raw  Surface
Inner Rim 21mm Hooked
Outer Rim 29mm
Hub Unit Aluminium Alloy Custom Charger, 142*12mm Thru Axle, Centre Lock
Freehub Aluminium Alloy 36 Ratchet 11/12 Shimano / 12xdr / Campagnolo
DT Swiss exp freehub option available
Bearings Ceramic SS
Braking System Disc Brake (Centre Lock Fitting)
Tyre Compatibility 23mm to 32mm (Optimal 25mm to 28mm)
Maximum Rider Weight No Limit
Warranty 2 Years Manufacturer Fault

MAXIMUM RECOMMENDED TYRE PRESSURE

25mm – 90psi / 6.2bar

28mm – 85psi / 5.8bar

30mm – 80psi / 5.5bar

32mm – 75psi / 5.2bar

Weights

1205g +/- 30g

Charger Trispoke vs Asymm Turbulate

Additional information

Freehub

Shimano HG, SRAM 12XDR

Decal Colour

, ,

Delivery and Returns

Lead Time

There is a 1 to 3 weeks lead time for all Revolver Wheels. There is a 1 to 10 days lead time on all accessories.

Returns

We are happy to offer an exchange or refund. Perhaps the item is not what you want, it doesn’t fit, or maybe you’ve just changed your mind. As long as your items are unused, in their original packaging and returned within 28 days of receipt, just send it back.

Please note, unwanted items are returned at the buyers expense.

If you return an item because it is not as described or it’s damaged, we will replace the item or issue a full refund by the payment method that was received.

Warranty

Extent of Limited Warranty warrants its products to be free from defects in materials or workmanship for a period of two years after original purchase. This warranty only applies to the original owner and is not transferable. Claims under this warranty must be made through the retailer where the wheel was purchased or direct to the Wave Lenticular Ltd via e-mail. Original proof of purchase is required.

Limitations of Liability

To the extent allowed by local law, except for the obligations specifically set forth in this warranty statement, in no event shall Wave Lenticular Ltd. or its third party supplies be liable for direct, indirect, special, incidental, or consequential damages.

Limitations of Warranty

  • This warranty does not apply to products that have been incorrectly installed and/or adjusted.
  • This warranty does not apply to damage to the product caused by a crash, impact damage, abuse of the product, non-compliance with manufacturers specifications of usage or any other circumstances in which the product has been subjected to forces or loads beyond its design.
  • This warranty does not apply when the product has been modified.
  • This warranty does not apply when the serial number or production code has been deliberately altered, defaced or removed.
  • This warranty does not apply to normal wear and tear. Wear and tear parts are subject to damage as a result of normal use.
  • This warranty shall not cover damages caused by the use of parts of different manufacturers. This warranty shall not cover damages caused by the use of parts that are not compatible, suitable and/ or authorized by Wave Lenticular Ltd.

Lifetime Crash Replacement Policy

In the unfortunate event of a crash resulting in such damage to your wheels that renders them unsafe for use we will help out by discounting the like for like replacement by up to 33% for the lifetime of your wheels under original customer ownership. Any shipping costs of return or replacement are not covered within this policy and are the responsibility of the customer.

What’s not applicable-

  • This replacement service does not carry over to subsequent owners and original proof of purchase is required upon application.
  • This service does not cover cosmetic damage or apply to general wear and tear from normal use such as (but not limited to) – snapped spokes, bearings or seals degradation.
  • Any shipping costs of return or replacement are not covered within this policy and are the customers responsibility.

3 YEAR WARRANTY

At Evolve Aero we endeavour to support our customers with excellent backup service in the unlikely event of a warranty related issue and resolve any problems in a timely manner subject to stock availability or lead times. Our support reputation relies on a satisfactory customer experience should things go wrong.

Your wheels carry a 3-year material defects and craftmanship warranty. This period applies rigidly from the date you receive your wheels. It does not cover crash or accidental damage, please refer to the lifetime crash replacement policy. Warranty does not carry over to subsequent owners and proof of purchase should be retained while in ownership. Warranty does not cover failure due to impact or improper use. Damage as a result of Incorrect- installation, adjustment or maintenance is not covered under warranty. Rider weight limits must be adhered to during the lifetime of the wheels- refer to the product page for maximum rider weight information. Any return shipping of wheels or import related costs- tax/duties etc are the responsibility of the claiming customer.

If you have a potential warranty claim and require further instruction or advice just get in touch by email – sales@evolveaero.com we’re here to help.
