AEROTO In+Out – Disc brake rotor system


Disc Brake Rotor System.

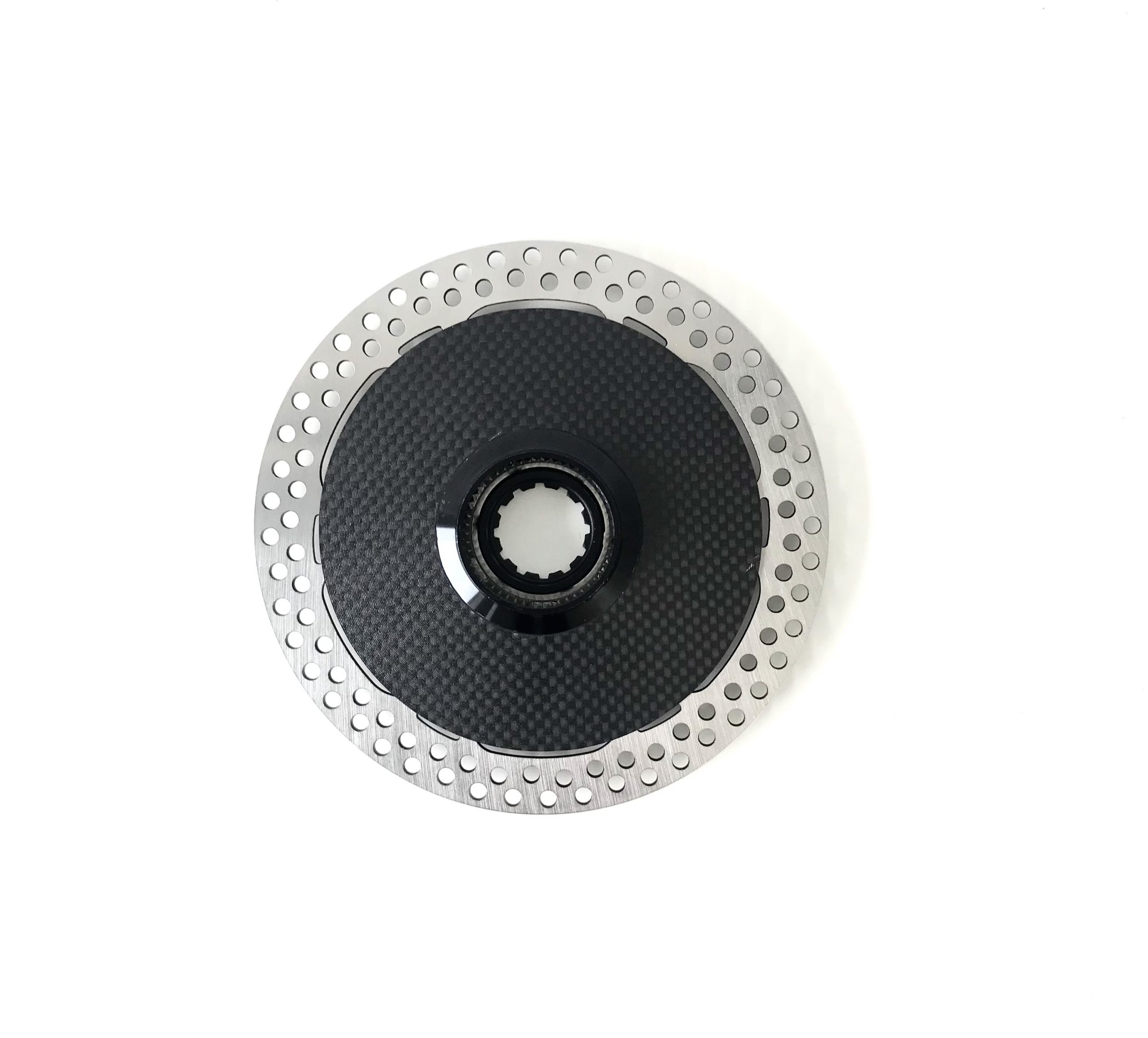

The Aeroto In+Out is an aerodynamic rotor system which has been designed to help improve airflow around disc brake rotors and is intended for TT/Tri bikes only.

This stealthy Carbon fibre lens component has bonded durable alloy central fittings and is supplied with a 140mm or 160mm aero rotor. Based on the popular Centre Lock format fitting is simple using a regular internal rotor/cassette lock ring tool. Oversized axles which require an external outer locking tool are not compatible.

*Note- alternative compatible rotors can be used. Please check with us for guidance

Lead 1-7 days – Contact on availability

Note: These are sold as a single item and not a pair. If you need a pair please ensure you order two of the correct size.

Note: This is not compatible with the Scott Plasma 6 frame set

Add to Wishlist
Add to Wishlist
Category: SKU: revolver-aeroto-1 Tag:



The Aeroto has undergone 12 months of real world field testing at the highest level of professional Triathlon racing and used during Ironman records and wins along the way. Intended mainly for front wheel use but can also be fitted to the rear on TT/Tri bikes on race day wheels only and not to be used on road bikes or for general training. Design features are in place to reduce risk of unwanted overheating but we do not recommend it for races where prolonged heavy braking is required. Aerodynamic benefits are less likely to be seen if mounted to the rear rotor.

Upon fitting ensure that the caliper braking pads only contact the outer metal brake surface of the rotor and do not come into contact with the Aeroto carbon shield when brakes are engaged as this is likely to result in immediate failure of the shield. Typically the Aeroto will sit with enough clear space without any adjustment to your hydraulic calipers. Please check this carefully before use, onus is on the customer or mechanic installing this component.

Potential savings of 2 to 4 watts are indicated in testing when fitted to the front wheel but may differ between wheel types, rotor type and size, fork blade profiling.



Materials Carbon/Alloy Inner Lens Mounting Shield
Carbon/Alloy Outer Lens Locking Shield
Steel Rotor Outer Face Spacer
Rotor Supplied
Weight: 140mm 139g (system weight including rotor)
Weight: 160mm tbd


Additional information

Option (each)

140mm Front, 140mm Rear, 160mm Front, 160mm Rear

Delivery and Returns

Lead Time

There is a 1 to 3 weeks lead time for all Revolver Wheels. There is a 1 to 10 days lead time on all accessories.


We are happy to offer an exchange or refund. Perhaps the item is not what you want, it doesn’t fit, or maybe you’ve just changed your mind. As long as your items are unused, in their original packaging and returned within 28 days of receipt, just send it back.

Please note, unwanted items are returned at the buyers expense.

If you return an item because it is not as described or it’s damaged, we will replace the item or issue a full refund by the payment method that was received.


Extent of Limited Warranty warrants its products to be free from defects in materials or workmanship for a period of two years after original purchase. This warranty only applies to the original owner and is not transferable. Claims under this warranty must be made through the retailer where the wheel was purchased or direct to the Wave Lenticular Ltd via e-mail. Original proof of purchase is required.

Limitations of Liability

To the extent allowed by local law, except for the obligations specifically set forth in this warranty statement, in no event shall Wave Lenticular Ltd. or its third party supplies be liable for direct, indirect, special, incidental, or consequential damages.

Limitations of Warranty

  • This warranty does not apply to products that have been incorrectly installed and/or adjusted.
  • This warranty does not apply to damage to the product caused by a crash, impact damage, abuse of the product, non-compliance with manufacturers specifications of usage or any other circumstances in which the product has been subjected to forces or loads beyond its design.
  • This warranty does not apply when the product has been modified.
  • This warranty does not apply when the serial number or production code has been deliberately altered, defaced or removed.
  • This warranty does not apply to normal wear and tear. Wear and tear parts are subject to damage as a result of normal use.
  • This warranty shall not cover damages caused by the use of parts of different manufacturers. This warranty shall not cover damages caused by the use of parts that are not compatible, suitable and/ or authorized by Wave Lenticular Ltd.
