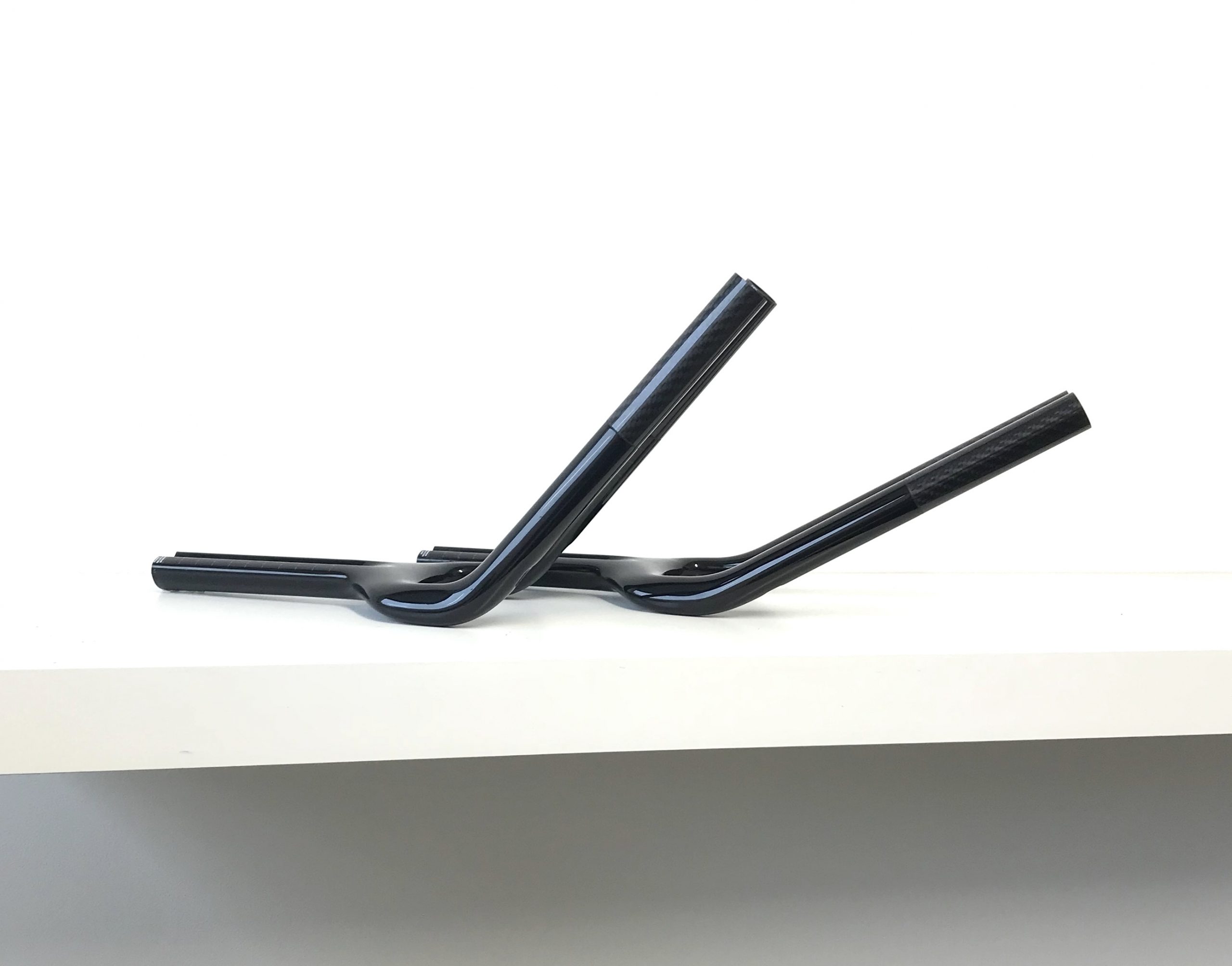

EX11 P5 Mantis Tribar Extensions – 30 & 50 degrees


An alternative solution to achieving an upright forearm or ‘Mantis’ TT position, compatible with the Cervelo P5 Disc bike. These EX11 mono extension bars are professionally altered at our Revolver workshop creating an extra 100mm of carbon hand grip length while reducing the mount insertion prongs by 50mm. This allows the bars to be moved fully back improving aerodynamics as well as helping achieve a suitable hand height and forearm angle. A clean no fuss solution that compliments the aesthetics of the P5d cockpit. Available in 30 & 50 degree options. Our stock 100mm grip length can be custom sized upon request and quoted for accordingly.

We also offer the service of converting P5d owners existing mono extensions to the same standard. The advantage here could be to save costs or reduce lead time in some instances. This service is provided at a cost of £175.

Optional Armrest Wedges. We have developed dedicated wedges to assist comfort and efficiency further when fitting this Tribar. Incorrectly angled armrests become very uncomfortable very quickly and lack stability so we recommend using a suitable wedge or shim. Our new sliding mount design allows precision positioning of the armrest and complies fully with Cervelo armrest bolt mounting practice. CNC machined from 6082 T6 condition Alloy and supplied with Stainless Steel bolts these wedges are of the highest quality.

We offer a range of suitable Carbon fibre armrests but recommend our specialist ErgoMantis models for maximum comfort, security and power delivery when adopting a Mantis TT position.

Lead 1-2 weeks typical.

Contact for availability

Important Note: To use your own bars choose the Customer Bar EX11 Conversion option below at checkout.

Add to Wishlist
Add to Wishlist



EX11 P5 Tribars
Material UD Carbon fibre / 3K 2/2 twill carbon extended grips
Angle Options 30 & 50 degree
Weight 158g typical
Dimensions See photographic dimensions
Slider wedges/shims
Material 6082 T6 condition Aluminium alloy – black anodised
Angle 15 Degree
Fixings A2 Stainless Steel – various
Weight 17g each

Additional information

Tribar Option

New EX11 P5 Mantis Tribar, Customer Bar EX11 Conversion

Tribar Angle

30 Degree, 50 Degree

15 Degree P5d Wedges

With 15 Degree P5d Wedges, Without 15 Degree P5d Wedges

Sizing Specification Sheet

Download Sizing Sheet (RTF Format) – Revolver 2020 Mono tribar sizing sheet

Download Sizing Sheet (PDF Format) – Revolver 2020 Mono tribar sizing sheet
