Description

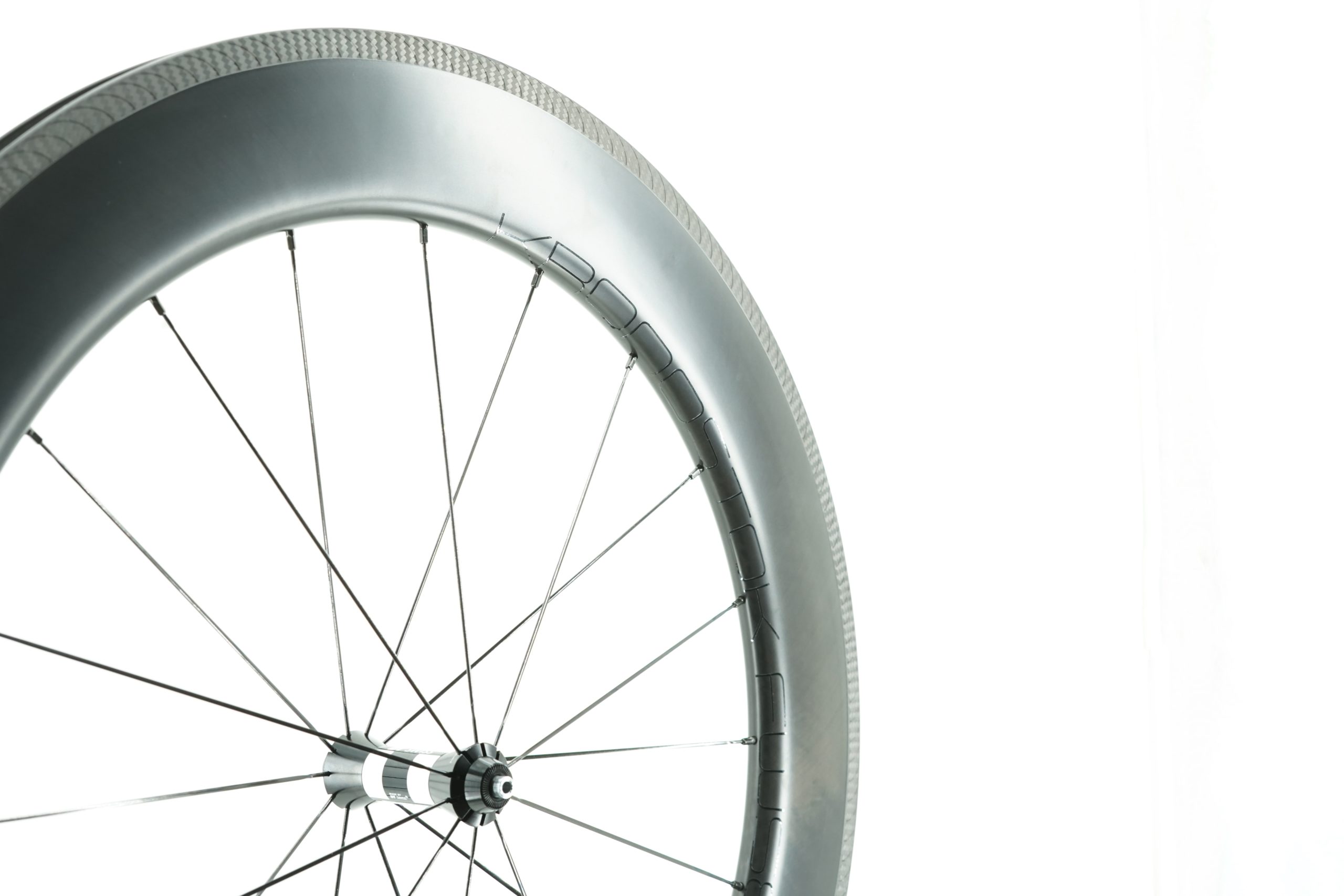

Our FWS tubeless compatible clinchers have efficient low drag profiles optimized for use with 23mm to 26mm tyres which deliver excellent aerodynamic performance in real world conditions. Intended primarily for use in TT and Triathlon, these deep rim wheelsets display excellent handling characteristics which would also permit use in road racing or fast training sessions.
A wide 19mm inner rim bed improves tyre to rim interface when using recommended tyre sizes keeping airflow disruption to a minimum. Increased tyre volume enhances comfort and control while reducing the potential for pinch flats if running with inner tubes as the tyre sits inline with the outer rim.
Manufactured using FWS technology results in an evenly balanced, lighter, stiffer rim which is handbuilt onto DT Swiss hubs using Sapim CX Ray spokes to produce a high quality Pro level performance wheelset.
TYRE RECOMMENDATION
A highly versatile rim design allows a great general aerodynamic compatibility using a tyre width
ranging from 23mm to 26mm. Due to the wide inner rim track inflated tyres will sit between
1mm to 2mm wider than indicated depending on tyre brand.
Wider tyres can be supported up to 45mm but will inevitably come with an aerodynamic penalty.
MAXIMUM RECOMMENDED TYRE PRESSURE
23mm – 90psi / 6.2bar
25mm – 80psi / 5.5bar
28mm – 70psi / 4.8
2 year warranty
Warranty- 24 months
Specification
Rim – 700c | ETRTO 622x19mm, Clincher specific, Tubeless/Clincher or Tubular |
FWS Technology | Filament Winding System, T700 Uni-directional full carbon fibre + Graphene, High glass transitional temperature (hiTg) Epoxy. Spoke Tension Max 130kgf. |
5.5 – 55mm x 25mm-26mm, internal 19mm | ERD: 534mm |
7 – 69mm x 25mm-26mm, internal 19mm | ERD: 502mm |
8 – 79mm x 25mm-26mm, internal 19mm | ERD: TBD |
Max Outer Profile Width | 27mm |
Hub | DT Swiss 350 straight pull- Aluminium 24h/20h, Quick Release |
Cassette Body | Aluminium alloy, 36 Ratchet system |
Compatibility | Shimano/Sram 10/11s, Campagnolo 8,9,10,11s, Sram 12s XDR |
Axel System | Quick Release- 100mm front/135mm rear |
Spokes | Sapim CX Ray black. 20h front radial, 24h rear X2 drive – radial non drive |
Nipples | Sapim sils black, lock brass |
Brake Type | Rim |
Tyre Compatibility | 23mm to 28mm recommended
Maximum tyre pressures: *115psi – 7.9bar Clincher *100psi – 6.9bar Tubeless *145psi – 10bar Tubular |
Skewers | Quick release, Titanium/Alloy, black |
Spoke Tension Max | 135kgf |
Rim Tapes | Suitable for format |
Weights
+/- 30g Note:
Kronostok FWS 5.5 | Clincher/tubeless – 350 hub 1620g / 240 hub 1570g |
Kronostok FWS 7 | Clincher/Tubeless – 350 hub 1735g / 240 hub 1685g |
Kronostok FWS 8 | Clincher/Tubeless – 350 hub 1815g / 240 hub 1765g |
Maximum Recommended Rider Weights
Kronostok FWS 5.5 | 100kg |
Kronostok FWS 7 | 110kg |
Kronostok FWS 8 | 120kg |
